Calpeda NM EI 80/16A/C I-MAT Flanged End Suction Pump 415v
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
* Available where Guaranteed Stock Icon Appears Below

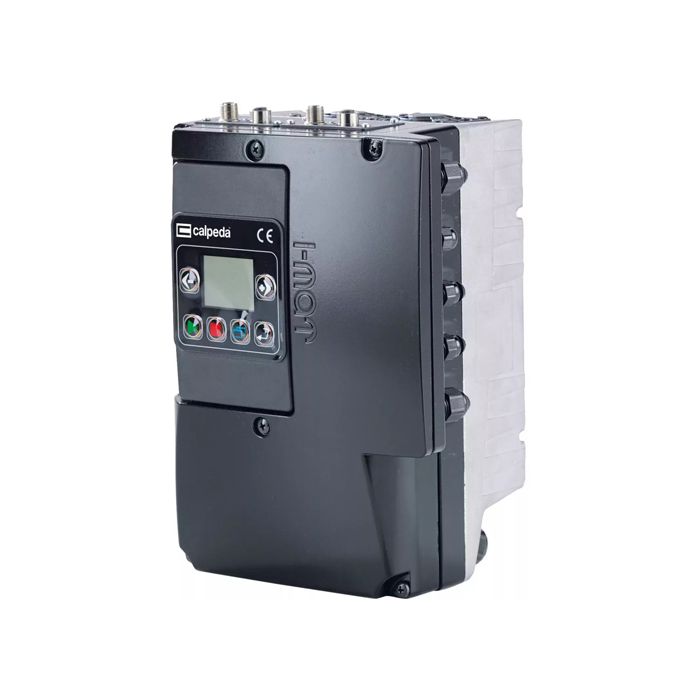

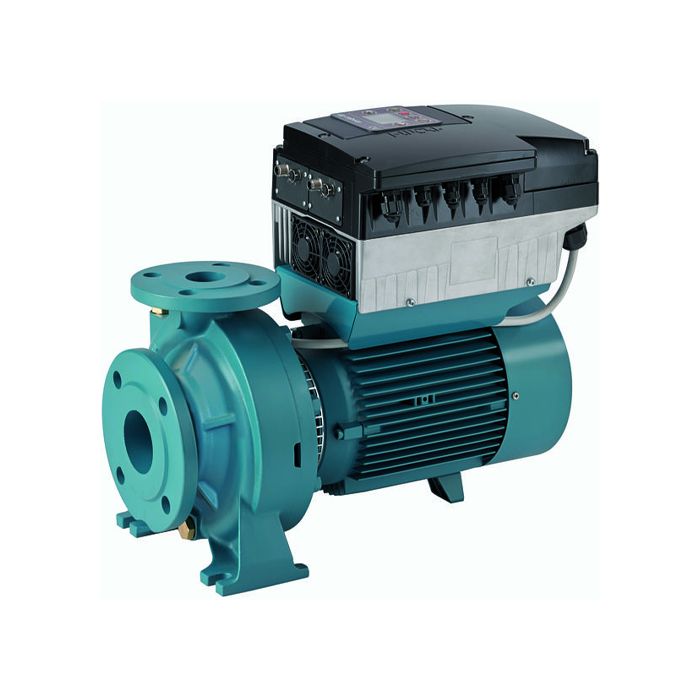

This Calpeda NM pump comes with an I-MAT control panel.
Calpeda NM flanged end suction close-coupled centrifugal pumps have an electric motor with shaft directly connected to the pump.
These pumps are suitable for the following applications:
- Clean liquids without abrasives, which are non-aggressive for the pump materials (solids content up to 0.2%)
- Mains water supply
- Heating, air conditioning, cooling and circulation
- Civil and industrial applications
- Fire fighting applications
- Irrigation
| SKU | U89004700000 |
|---|---|
| Manufacturers | Calpeda |
| Manufacturers Warranty | 1 Year |
| Weight | 163.0 Kg |
| Inlet Dimension | 100mm Flanged |
| Discharge Dimension | 80mm Flanged |
| Motor Size | 18,500W |
| Full Load Current (FLC) | 34A |
| Voltage | 415V 3Ph 50Hz |
| RPM | 2900 |
| Max Flow | 192m³/hr |
| Max Head | 39.9m |
| Max Temperature | 90°C |
| Material | Cast Iron |
| Seal Type | Carbon-Ceramic-NBR |
| Impeller Material | Cast iron GJL 200 EN 1561 |
| Country of Manufacture | Italy |
