Calpeda Meta Variable Speed Pressure Boosting System 240v - META
Construction
Self-priming booster set with built in frequency converter.
MÈTA is a plug and play solution, the pump is equipped with an integrated pressure transducer, an integrated check valve and a built-in pressure vessel.
The VSD controls the start and stop of the pump and allows to keep a constant pressure.
Applications
- for water supply
- for domestic use, for garden use and irrigation
Features
- integrated frequency converter
- built-in pressure vessel
- high efficiency asynchronous single-phase motor
- motor power control
- programmable re-start pressure
- no hydraulic losses due to the measuring devices
- voltage and current control
- monitoring of maximum starting current
Protections
- dry-run protection
- detects the presence of air in the pump casing
- overload control and overheating motor control
- pump blockage
- power supply control
- starts per hour control
- detects small leakages in the system
SKU | T663A10210S3 |
---|---|
Manufacturers | Calpeda |
Manufacturers Warranty | 2 Years |
Weight | 13.0 Kg |

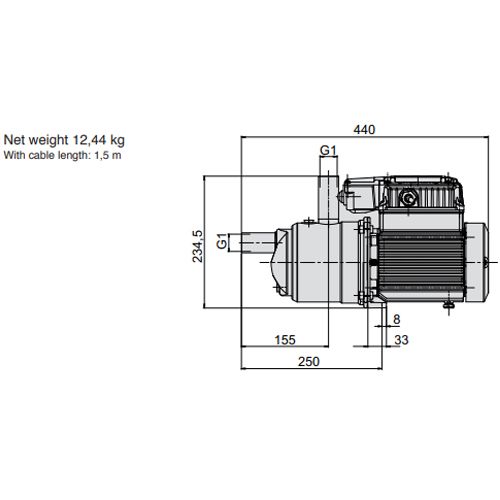

Dimensions | 440mm x 240mm x 160mm |
Connection Type | 1 Inch BSP Female |
Motor Size | 1,350W |
Full Load Current (FLC) | 5.9A |
Voltage | 240V 1Ph 50Hz |
Cable Length | 1.5m |

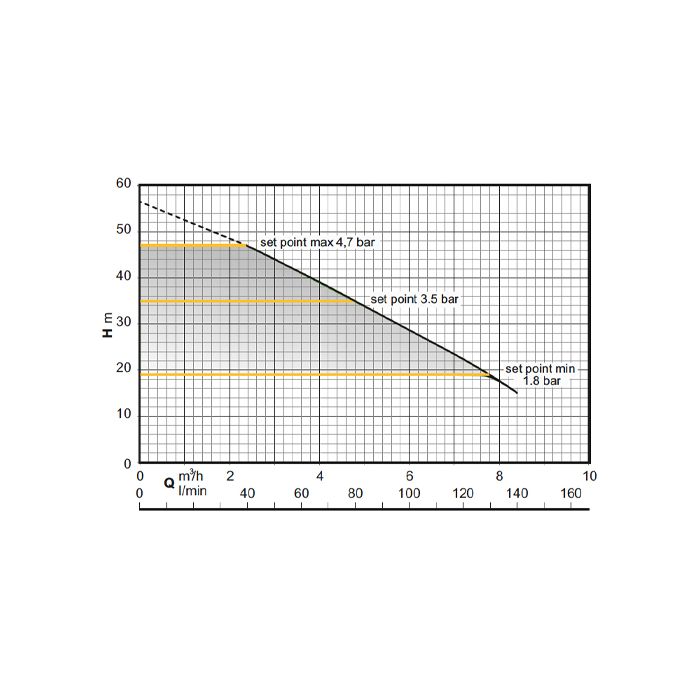

Max Flow | 8.4m3/hr |
Max Head | 55m |
Max Temperature | 35°C |
Seal Type | Carbon Ceramic NBR |
Impeller Material | 304 Stainless Steel |
