Calpeda GXVm 25-10-GF Submersible Dirty Water Pump with Magnetic Floatswitch 110V [Bundle Kit]

Name: Calpeda GXVm 25-10-GF Submersible Dirty Water Pump with Magnetic Floatswitch 110V [Bundle Kit]
Brand: Calpeda
SKU: GXVm25-10-GF-110-KIT
Price: 635 GBP
Availability: InStock

SKU

GXVm25-10-GF-110-KIT

MRRP £906.00 + VAT Our price £635.00 (+ VAT) Incl. VAT: £762.00

BEST ONLINE PRICES

FREEPHONE 0800 112 3134 if you've seen it cheaper.

Order within

Hours

Mins

Secs

for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

Overview & Spec

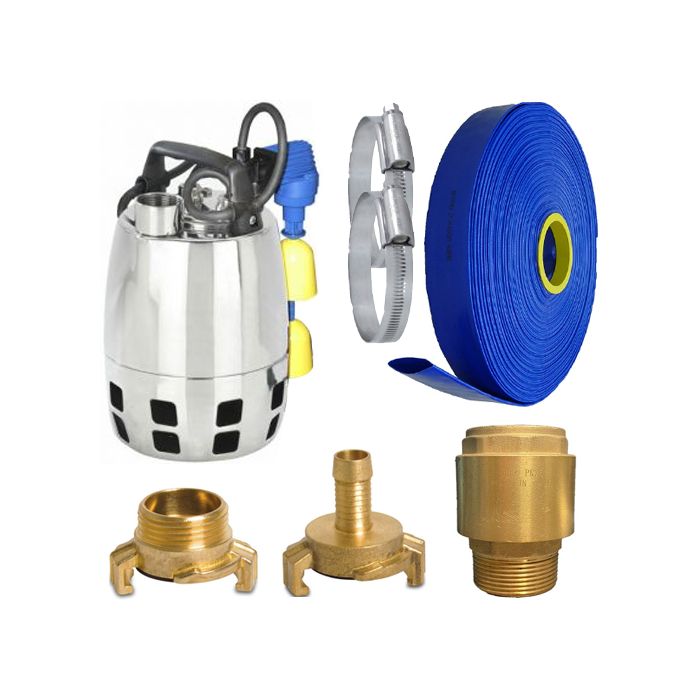

Bundle Kit - Everything you need to get going, with a convenient carry crate to store it.

Calpeda GXVM 25-10-GF
x2 Stainless Steel Suction Hose Clips - 1 1/4"
Profec Brass Quick Coupler with Male Thread - 1 1/4"
Profec Brass Quick Coupler with Hose Tail 1 1/4"
Brass Male-to-Female Non-Return Valve 1 1/4"
10m Blue Layflat Hose - 1 1/4"

Calpeda GXVm 25-10-GF Submersible Dirty Water Pump with Magnetic Floatswitch 110V - GXVm25-10-GF-110

Calpeda GXVm 25-10-GF Submersible Stainless Steel dirty water drainage pump (25mm solids handling) without floatswitch, 10m cable and 0.45kW 110V 1Ph 50Hz motor.

Calpeda GXR and GXV Submersible dirty water Pumps can be used for the following applications:

GXR:

For clean water containing solids up to 10mm diameter.
For draining rooms or or emptying tanks.
Extraction of water from ponds, streams or pits and for rainwater collection.
For irrigation purposes.

GXV:

For clean or slightly dirty water, containing solids up to 25 mm grain size.
Particularly suitable for liquidor with filamentous particles.

For outdoor use a power supply cable of not less than 10m should be used.

Construction Details:

Single-impeller submersible pumps in chrome-nickel stainless steel, with vertical delivery port.
GXR: with open impeller.
GXV(25): with free-flow (vortex) impeller.
Motor cooled by the pumped water passing between the motor jacket and the external jacket.
Handle in polypropylene.
Double shaft seal with oil chamber.
Certain models have a float switch for automatic start/stop.
Head up to 12.7m and flow rates up to 220 litres/min.
1 1/4" BSP Female Discharge Port.

More Information
SKU	GXVm25-10-GF-110-KIT
Weight	9.0 Kg
Dimensions	337mm High x 176mm Diameter
Manufacturers	Calpeda
Manufacturers Warranty	1 Year
Material	Stainless Steel
Connection Type	1 1/4 Inch BSP Female
Voltage	110V 1Ph 50Hz
Max Flow	13.2m3/hr
Max Head	10m
Full Load Current (FLC)	4.5A
Cable Length	5 Metres
Float Switch	Yes
