Calpeda GXV 25-10-SG Submersible Dirty Water Pump without Floatswitch 415V
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
* Available where Guaranteed Stock Icon Appears Below
Calpeda GXV 25-10-SG Submersible Dirty Water Pump without Floatswitch 415V - GXV25-10-SG
Calpeda GXV 25-6-SG Submersible Stainless Steel dirty water drainage pump (25mm solids handling) without floatswitch, 10m cable and 0.25kW 415V 3Ph 50Hz motor.
Calpeda GXR and GXV Submersible dirty water Pumps can be used for the following applications:
GXR:
- For clean water containing solids up to 10mm diameter.
- For draining rooms or or emptying tanks.
- Extraction of water from ponds, streams or pits and for rainwater collection.
- For irrigation purposes.
GXV:
- For clean or slightly dirty water, containing solids up to 25 mm grain size.
- Particularly suitable for liquidor with filamentous particles.
For outdoor use a power supply cable of not less than 10m should be used.
Construction Details:
- Single-impeller submersible pumps in chrome-nickel stainless steel, with vertical delivery port.
- GXR: with open impeller.
- GXV(25): with free-flow (vortex) impeller.
- Motor cooled by the pumped water passing between the motor jacket and the external jacket.
- Handle in polypropylene.
- Double shaft seal with oil chamber.
- Certain models have a float switch for automatic start/stop.

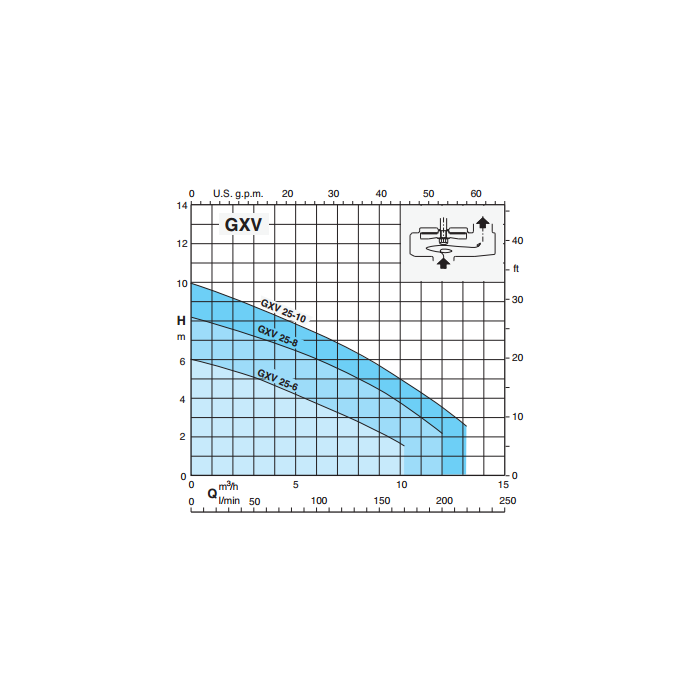

- Head up to 12.7m and flow rates up to 220 litres/min.
- 1 1/4" BSP Female Discharge Port.
| SKU | GXV25-10-SG |
|---|---|
| Weight | 6.8 Kg |

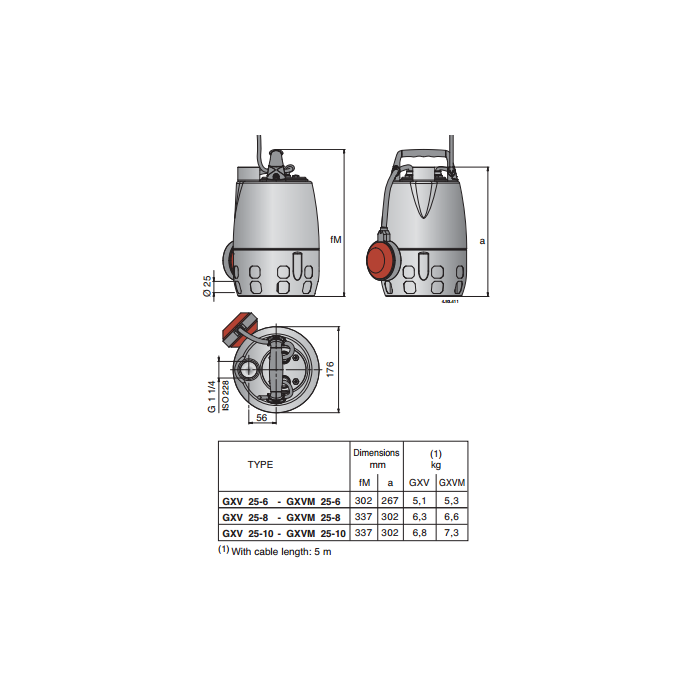

| Dimensions | 337mm High x 176mm Diameter |
| Manufacturers | Calpeda |
| Manufacturers Warranty | 1 Year |
| Material | Stainless Steel |
| Connection Type | 1 1/4 Inch BSP Female |
| Voltage | 415V 3Ph 50Hz |
| Max Flow | 13.2m3/hr |
| Max Head | 10m |
| Full Load Current (FLC) | 1.6A |
| Cable Length | 5 Metres |
