Calpeda GQSM 50-13 Submersible Vortex Pump With Float 240v
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
Calpeda GQSM 50-13 Submersible Vortex Pump With Float 240v - 70U91200000
The Calpeda GQS and GQV is a range of submersible pumps that contain a free flow vortex impeller.
This three phase model has been designed to be installed for domestic use for applications of 10m head maximum and has a verticle outlet port.
However both the GQS and GQV models have a double mechanical shaft seal with an interposed oil chamber which helps to protect against dry-running.
The GQS Range have been designed to pump waste water, dirty water with solids up to a grain size of 50mm and for liquids which are compatible with pump stations for domestic and industrial sites.
As well as this, GQS pumps can also be used to drain rooms, emptying tanks and for the extraction of water from ponds, streams and pits for the application of rainwater collection.

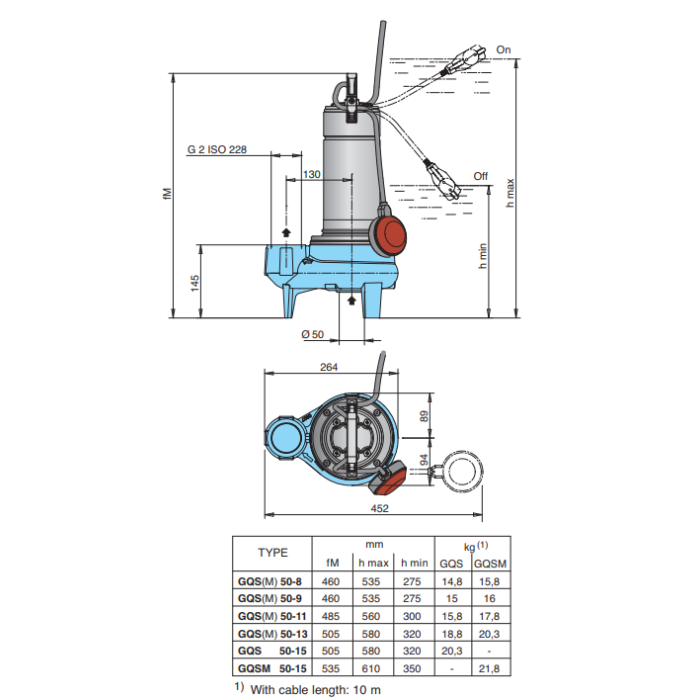

Construction
- Single-impeller submersible pumps,
- Free-flow (vortex) impeller
- Vertical threaded delivery port (G 2”).
- Double mechanical shaft seal with interposed oil chamber, to protect against dry-running.
Applications
- For domestic or industrial waste water, dirty water with solids up to 50 mm grain size, for liquids which are compatible with the pump materials.
- For draining rooms or or emptying tanks.
- Extraction of water from ponds, streams or pits and for rainwater collection.
SKU | 70U91200000 |
---|---|
Weight | 20.3 Kg |
Dimensions | 505 x 264 x 183 mm |
Manufacturers | Calpeda |
Manufacturers Warranty | 1 Year |
Material | Cast Iron |
Connection Type | 2 Inch BSP Female |
Voltage | 240V 1Ph 50Hz |
Max Flow | 600 l/min |
Max Head | 13 Metres |
Full Load Current (FLC) | 1.1 kW |
Cable Length | 10 Metres |
Float Switch | Yes |
