Calpeda GEO230-GXVM25-10 Submersible Pump Lifting Station (Automatic) 240V

SKU
GEO230-GXVM25-10
MRRP £1,505.00 + VAT Our price £979.00 (+ VAT) Incl. VAT: £1,174.80

BEST ONLINE PRICES

FREEPHONE 0800 112 3134 if you've seen it cheaper.

Order within
Hours
Mins
Secs
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

Calpeda GEO230-GXVM25-10 Submersible Pump Lifting Station (Automatic) 240V - GEO230-GXVM25-10

The GEO230 single tank with 230 litre nominal capacity comes with the GXVM25-6, 25-8, 25-10, 40-A and GQSM50-13 submersible pump depending on application.  Other pump models can be fitted, please ask Sales for details.

The GEO230 range Automatic collecting and lifting stations:

  • For clean water GXR pump series
  • For waste water GXV pump series



Features:



  • 1 x tank capacity 230 lt
  • 1 x single-phase pump with 5 m cable and float switch
  • 1 x discharge pipe kit Ø 40 mm in PVC

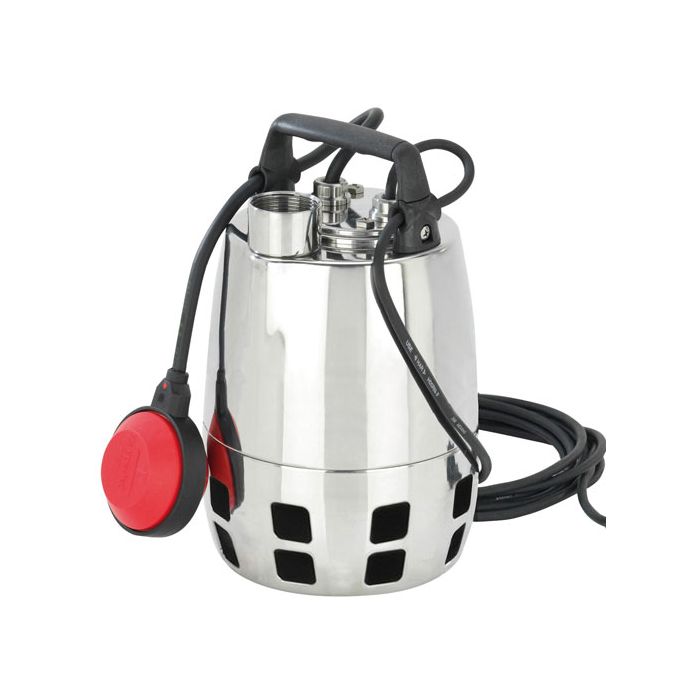

Pump Specification:



  • Stainless Steel construction
  • external float switch (cable)

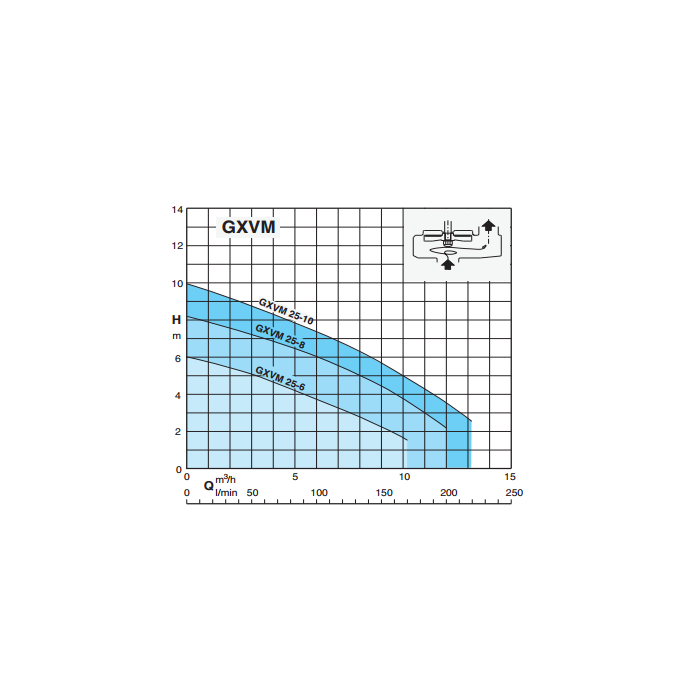

  • 13.2m3/hr max. flow
  • 10m max. head
More Information
SKU GEO230-GXVM25-10
Weight 11.0 Kg

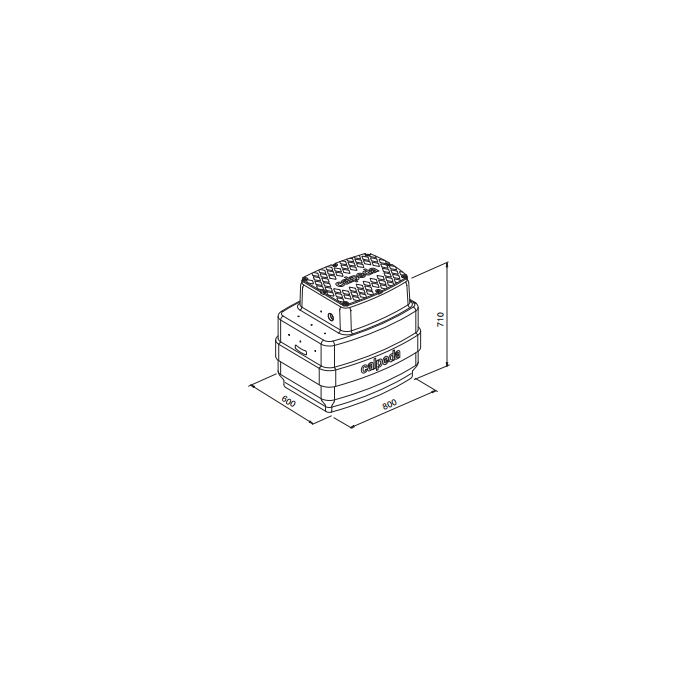

Dimensions 710mm High x 800mm Wide x 600mm Deep
Manufacturers Calpeda
Manufacturers Warranty 1 Year
Material Plastic
Connection Type 1 1/4 Inch BSP Female
Voltage 240V 1Ph 50Hz
Max Flow 13.2m3/hr
Max Head 10m
Full Load Current (FLC) 4.5A
Cable Length 5 Metres
