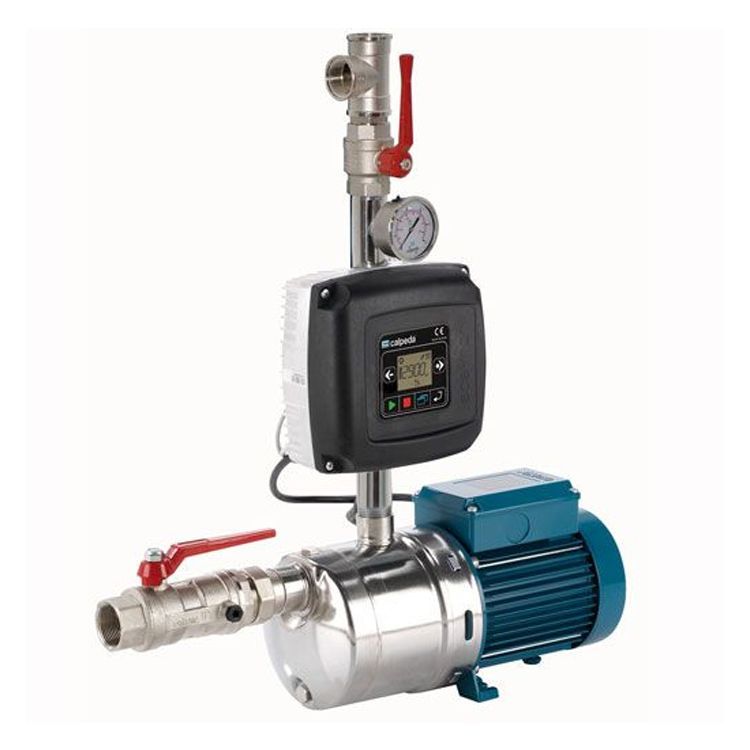

Calpeda Easymat 1MXH204/A-EMT-8 Variable Speed Single Pump Booster Set 240V - 1MXH204-A-EMT-8
Calpeda Easymat variable speed sets are designed for domestic and small commercial applications. The EASYMAT ( Variable Speed Control) is the first in a new generation of variable speed controllers developed by Calpeda. The system is installed independent of the pump and motor on the delivery pipe-work allowing for easy retro-fitting, and independent cooling of the motor fan.
The Easymat controller is only suitable for use with 240V single phase supply, and the following models are available for operation on pumps (max.2.2kW or 9.2A).
- MXP
- MXH
- MXSU
- MXVB
The units are controlled via a transducer and features a practical and easy to use LCD display featuring a wide range of display and operating functions and signals.
The Easymat controller can control one or two pump booster sets, as in the ranges 1MX and 2MX. This unit comprises a single MXH stainless steel, multi-stage booster pump with 1 1/4" screwed inlet and 1" screwed outlet connections.
| SKU | 1MXH204-A-EMT-8 |
|---|---|
| Manufacturers | Calpeda |
| Manufacturers Warranty | 1 Year |
| Weight | 46.5 Kg |
| Dimensions | 708mm High x 561mm Deep x 146mm Wide |
| Motor Size | 0.55 kW |
| Voltage | 240V 1Ph 50Hz |
| Max Flow | 4.7 m3/hr |
| Max Head | 45m |
| Material | Stainless Steel |
