ABS MF 324-10m Submersible Pump Without Floatswitch 240v
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
* Available where Guaranteed Stock Icon Appears Below

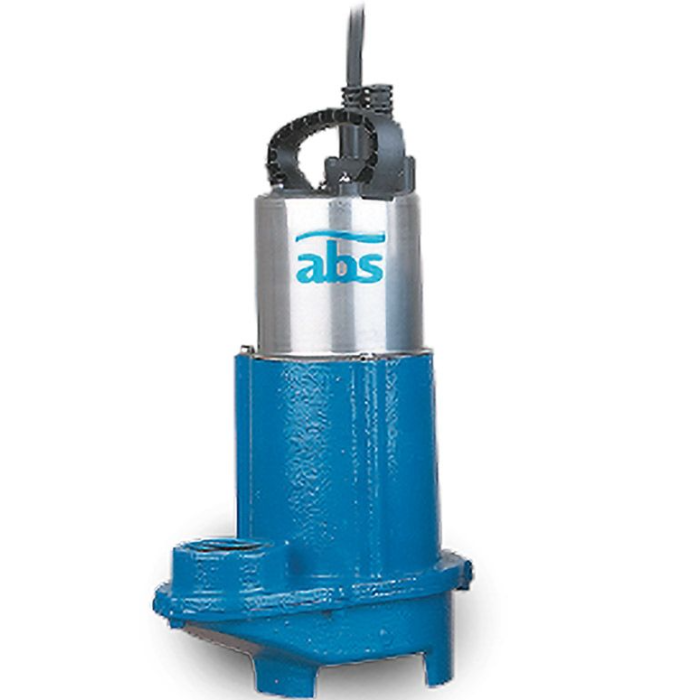

ABS MF 324-10m Submersible Pump Without Floatswitch 240v - 01399122
Compact submersible pumps with large solids passage for the reliable and effective dewatering of buildings and sites. The water-tight, fully flood-proof cast iron motor and the hydraulics section comprise a compact, robust, unit construction. The stainless steel motor shaft is supported in lubricated-for-life ball bearings.
Features:
- Simple, cost-effective, pump installation
- Vortex hydraulics for blockage-free pumping in critical applications
- Free-standing on legs or pedestal mounted
- Mechanical and lip seals on rotor shaft
- Thermal sensors to protect motor against overheating
- EasyFit plug-in cable connection
- Single-phase fitted with Schuko plug
Applications:
- Filling and emptying of containers to the drainage of flooded cellars and removal of rainwater
- Suitable for use in septic tanks and pumping effluent from locations below the backwash level in accordance with EN 12056
- The compact shape of the MF, fittings for easy mounting, and small sump requirements ensure a quick and cost-effective installation of the pump
| SKU | 01399122 |
|---|---|
| Manufacturers | ABS |
| Manufacturers Warranty | 1 Year |
| Weight | 9.0 Kg |

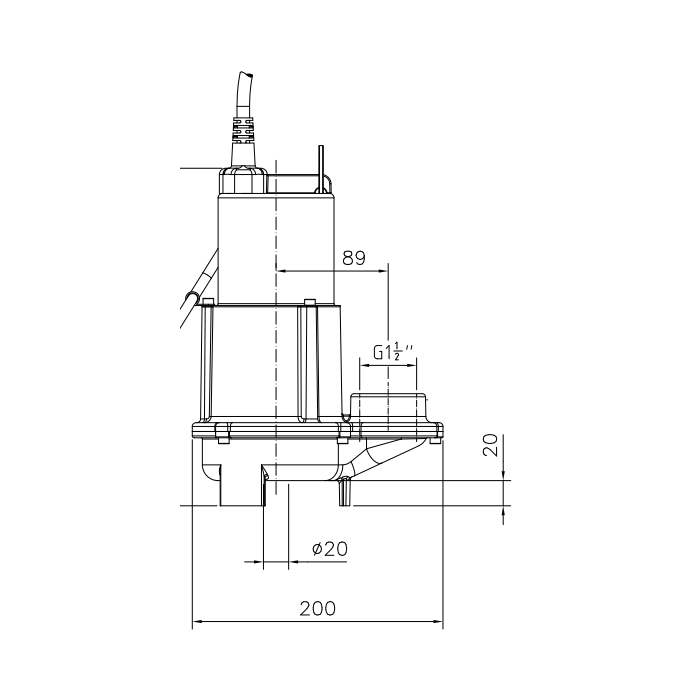

| Dimensions | 350mm (h) x 199mm (w) x 133mm (d) |
| Connection Type | 1 1/2 Inch BSP Female |
| Motor Size | P2 = 0.54kW |
| Full Load Current (FLC) | 3.6A |
| Voltage | 240V 1Ph 50Hz |
| RPM | 2900rpm |
| Cable Length | 10 metres |
| Max Flow | 14m3/hr |
| Max Head | 10m |
| Max Temperature | 40°C, or short term up to 60°C (max. 5 minutes) |
| Material | Cast Iron |
| Impeller Material | Polyamide |
