ABS J205 HD Submersible Drainage Pump With Built-In Terminal Block 415v - J34457331112111
The low weight and compact design of the submersible drainage pump J 205 ensures convenient transport, handling, and installation. The pump is ideal for pumping water and dirty water mixed with light abrasives.
Features:
- Plug in without having to worry about overheating. Built-in contactor connected to the thermal sensors protects the motor from overheating
- Double outer casing and good heat convection enable the pump to operate continuously at low levels or even run dry without damaging the motor
- Double mechanical seal in oil bath, mounted in seal cartridge for easy service. Primary seal: Silicon carbide on silicon carbide. Secondary seal: Silicon carbide on antimony treated carbon
- Upper bearing - single-row deep groove ball bearing; lower bearing - double angular contact ball bearing
- HD = high head
- Maximum submergence: 20 metres
- Star-Delta start with built-in terminal block
- Save time and money with easy on-site service. Modular design lowers the overall service costs. By removing the top cover of the pump, you can easily check the electrical junction box. Environmentally safe white oil is used in the oil casing for easy inspection of seal conditions
Applications:
- Dewatering in construction
- Dewatering in tunnelling
- Flood control
- Mine water management
**Discharge connection required** Discharge connections 4" (standard HD), 6" (standard ND), 8” hose connections. 4", 6", 8" G/B.S.P. threaded connections
**PLEASE NOTE THAT A DISCHARGE CONNECTION IS NOT PROVIDED WITH THIS PUMP AND MUST BE PURCHASED SEPARATELY.**
| SKU | J34457381112111 |
|---|---|
| Manufacturers | ABS |
| Manufacturers Warranty | 1 Year |
| Weight | 155.0 Kg |

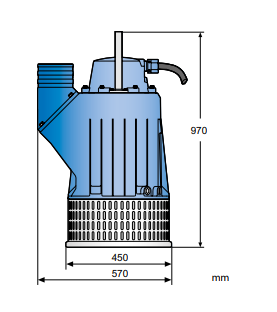

| Dimensions | 970mm (h) x 570mm (d) |
| Motor Size | P2 = 21kW |
| Full Load Current (FLC) | 39 A |
| Voltage | 415V 3Ph 50Hz |
| RPM | 2910rpm |
| Cable Length | 20 metres |
| Max Flow | 140m3/hr |
| Max Head | 72m |
| Max Temperature | Max temperature of pumped medium at max power input and continuous duty 40 ºC |
| Material | Aluminium |
| Impeller Material | White Cast Iron |
