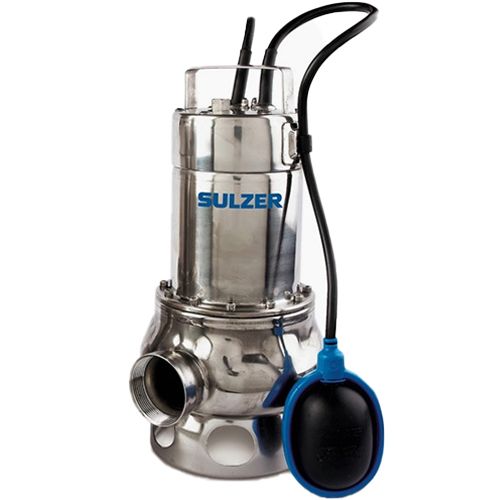

ABS IP 900W KS Submersible Drainage Pump With Floatswitch 240v
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
* Available where Guaranteed Stock Icon Appears Below
ABS IP 900W KS Submersible Drainage Pump With Floatswitch 240v - 01398746
The IP 900 is a high-grade stainless steel pump for aggressive media. Vortex hydraulics with 30 mm free passage make it particularly suitable for the pumping of fluids containing gaseous or abrasive particles. The combination of high-grade stainless steel 1.4401 (AISI 316), static seals of Viton, and mechanical seal of silicon carbide; plus other features, makes this the ideal pump for chemically contaminated wastewater, industrial effluent, and for use in agriculture.
Construction:
- Discharge outlet with G 2" internal thread
- Watertight, fully flood-proof, high-grade stainless steel motor housing
- Dynamically balanced 2-pole motor with high-grade stainless steel shaft 1.4401 (AISI 316)
- Thermal sensors in the stator switch off the pump in the event of overheating and automatically switch it back on after cooling down
- Sealing on the motor side is by means of a silicon carbide mechanical seal
- The maximum allowable medium temperature is 40 °C; or up to 60 °C for intermittent usage (max 5 minutes)
- Hydraulic section with vortex impeller (free solids passage 30 mm)
- Choice of free-standing or pedestal mounting for easy installation
Applications:
- Pumping of aggressive media
- Pumping of clear and rain water
- For blockage-free pumping of liquids which have a high proportion of solid or fibrous matter present
- Dewatering of buildings and sites
- Emptying or filling of containers
- Suitable for septic tank run-off, for the emptying of flooded cellars, and for drainage
| SKU | 01398746 |
|---|---|
| Manufacturers | ABS |
| Manufacturers Warranty | 1 Year |
| Weight | 12.0 Kg |

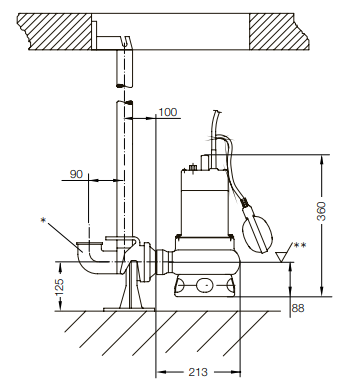

| Dimensions | 360mm (h) x 213mm (dia) |
| Connection Type | 2 Inch BSP Female |
| Motor Size | P2 = 1.1kW |
| Full Load Current (FLC) | 2.4A |
| Voltage | 240V 1Ph 50Hz |
| RPM | 2900rpm |
| Cable Length | 10 metres |
| Float Switch | Yes |

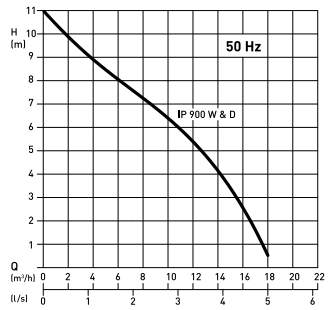

| Max Flow | 18m3/hr |
| Max Head | 11m |
| Max Temperature | 40°C; or up to 60°C for intermittent usage (max 5 minutes) |
| Material | Stainless Steel |
| Seal Type | Silicon Carbide |
