200mm (200NB) Flanged PN16 EPDM Untied Rubber Expansion Joint Set (x2) for Heating Systems
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
* Available where Guaranteed Stock Icon Appears Below

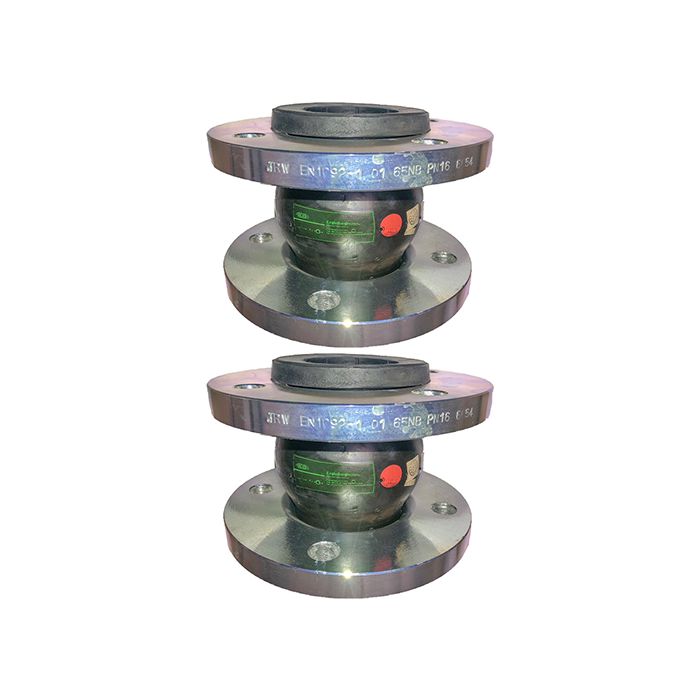

Designed to accommodate vibration the EPDM D Type single sphere expansion joint is suitable for hot and cold water, LTHW and primary systems
Flanged Untied Expansion Joints require the pipework to be securely anchored and guided for safe and correct operation
If there are high levels of vibration/ pressure at the pumps location then it is advised that tied expansion bellows are used and were working pressures are over 10BarG then tied units are required regardless of fixing points in the pipeline
Max Operating Conditions:
- 16BarG @ 80oC
- 9BarG @ 105oC
Minimum Operating Temp: -20oC
Test Pressure: 24BarG @ Ambient Temp
Bellow Length 130mm face to face
Construction Materials
NOT Suitable for secondary domestic hot water

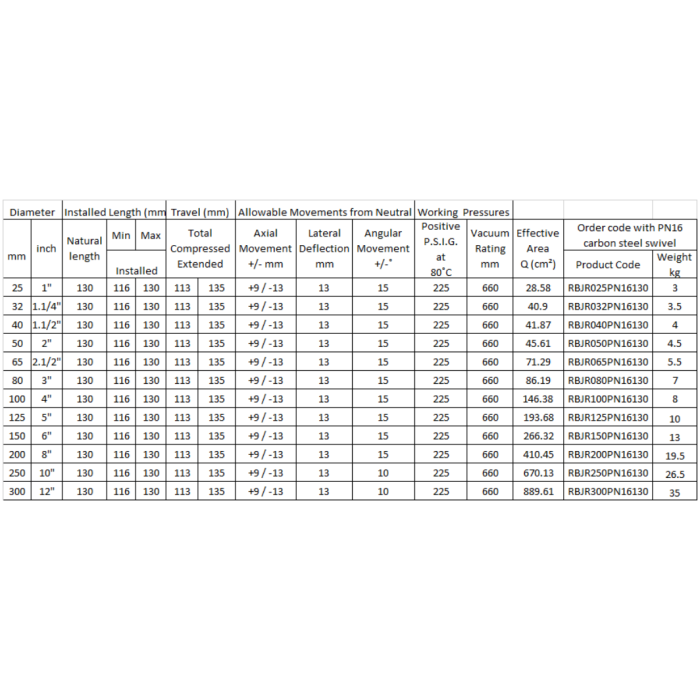

| SKU | RBJR200PN16130 |
|---|---|
| Weight | 39.0 Kg |
| Dimensions | 130mm length face to face |
| Manufacturers | Anchor |
| Material | Carbon Steel |
| Max Pressure | 16BarG @ 80oC |
| Max Temperature | 105oC @ 9BarG |
| Connection Type | 100mm Flanged |
| Suitable For Heating | Yes |
